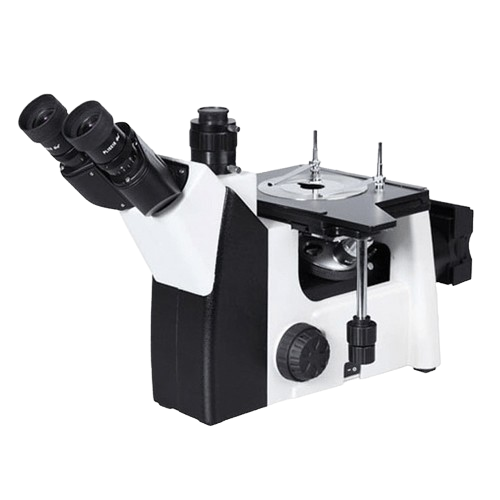

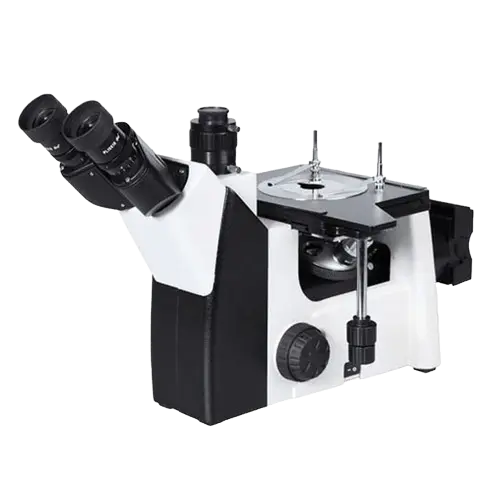

IE200M
Key Features of IE200M Metallurgical Microscopes in India
Long Working Distance Plan Achromatic Objectives
45° Inclined Gemel Trinocular Head with Adjustable Interpupillary Distance
Low-Position Coaxial Focus System (Fine & Coarse)
Reflection Koehler LED Illumination with Filters
Three-Layer Mechanical Stage with X-Y Control
| High eyepoint wild field plan eyepiece PL10X/18mm |
| High eyepoint wild field plan eyepiece PL10X/18mm with reticle |
| Long working distance plan achromatic metallurgical objective 10X LMPL10X/0.25 WD8.7mm |
| Long working distance plan achromatic metallurgical objective 20X LMPL20X/0.40 WD8.8mm |
| Long working distance plan achromatic metallurgical objective 50X LMPL50X/0.60 WD5.1mm |
| Long working distance plan achromatic metallurgical objective100X LMPL100X/0.80 WD2.0mm |
| Low position coaxial focus system, coarse: 38mm per rotation; fine precision: 0.002mm. 45° inclined gemel trinocular head, split rate=8:2; inter-pupillary rang: 54mm~75mm, with adjustment diopter |
| Quintuple nosepiece |
| Three layer mechanical stage, size: 180X155mm, low position control by right hand, moving range: 75X40mm |
| Metal plate, dia. 12 |
| Transmission Koehler illumination with alterable aperture diaphragm and centerable field diaphragm; wide-range voltage 100-240V, single 5W LED (warm), with continuous intensity. |
| Blue filter ɸ32 |
| Green filter ɸ32 |
| Yellow filter ɸ32 |
| Neutral filter ɸ32 |
How IE200M Metallurgical Microscopes Work?
The IE200M Metallurgical Microscope works by using reflected (incident) light to examine opaque samples like metals, alloys, and ceramics. Light from the built-in Koehler LED illumination is directed onto the sample surface, and the reflected light passes through high-quality plan achromatic objectives to produce a sharp, detailed image. The trinocular head provides comfortable 45° viewing for the eyes and a camera port for digital imaging. A coaxial coarse and fine focus system allows precise control over focus, while the mechanical X-Y stage enables smooth positioning of the sample. Additional filters enhance contrast, making microstructures, grain boundaries, and surface defects clearly visible for analysis and quality control.
Locations We Serve
QS Metrology provides IE200M Metallurgical Microscopes across India, serving all major industrial regions, including:
Delhi NCR, Rajasthan, Punjab, Uttar Pradesh, Himachal Pradesh, Uttarakhand, Jammu & Kashmir
Why Choose QS Metrology?
High-Quality, Precision Optics
Advanced Illumination & Contrast Techniques
Durable, Vibration-Free Mechanical Stages
Digital Imaging & Analysis Compatibility
Expert Support & Pan-India Service
FAQs
It is used to examine opaque materials like metals, alloys, ceramics, and composites, revealing microstructures, grain boundaries, and surface defects.
It features reflected Koehler LED illumination with optional filters (blue, green, yellow, neutral) for enhanced contrast.
With plan achromatic objectives and eyepieces, it provides magnification suitable for detailed inspection, typically ranging from 50× to 1000×.
Yes, the trinocular head allows camera attachment for imaging, documentation, and live display without affecting direct observation.
It has a three-layer mechanical X-Y stage for precise sample movement and a coaxial coarse & fine focus system for accurate focusing.
It is ideal for metallurgy, material testing, industrial quality control, research labs, and educational purposes.
