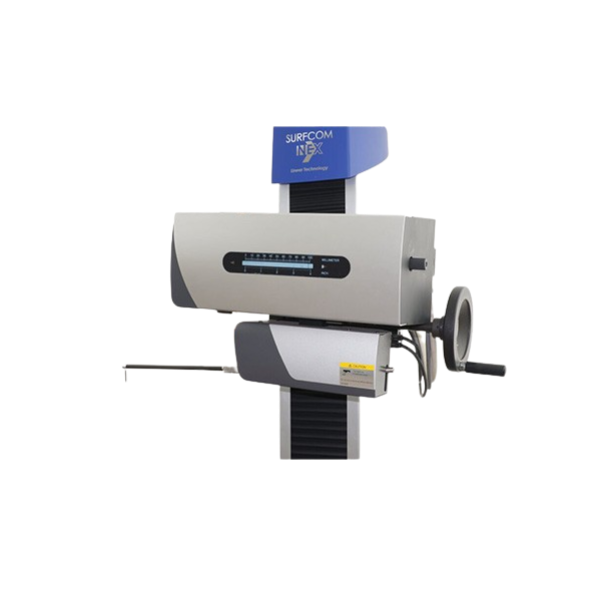

Surfcom NEX 040/030

The SURFCOM NEX series allows you to select detectors by application. Detectors can be used as a single detector or combined with others to serve as multiple sensors.

View Catalouge

Submit Enquiry

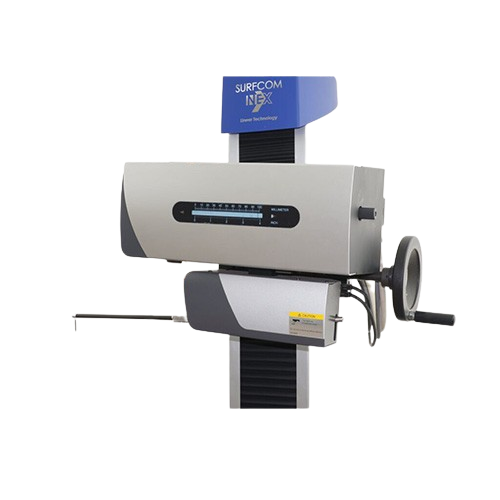

Surfcom NEX 040/030

The SURFCOM NEX series allows you to select detectors by application. Detectors can be used as a single detector or combined with others to serve as multiple sensors. The Z-axis measurement range is 60 mm. Stress-free replacement is possible with the newly-developed Quick-change mechanism of arm. Upward/downward measurements are optionally available.

Surfcom Nex has a high accuracy linear motor as the drive motor (patented) in a revolutionary new structure that dramatically pushes the envelope in terms of high accuracy.

Global model with highest accuracy in class
Detectors selectable by applications
Excellent extensibility worth initial investment
Available for the world-first hybrid detector with dual sensor technology
Advanced software ACCTee

Find Metrology Solutions In Strategic Industrial Locations

Contour Measuring Machine in Delhi NCR

Contour Measuring Machine in Rajasthan

Contour Measuring Machine in Punjab

Contour Measuring Machine in Uttar Pradesh

Contour Measuring Machine in Himachal Pradesh

Contour Measuring Machine in Uttarakhand

Contour Measuring Machine in Jammu & Kashmir

Key Features of Surfcom NEX 040/030 in India

High‑Precision Contour Measurement

Patented Magnetic Linear Drive

CNC‑Ready Automation Capability

Deep Feature Stylus Support

Flexible Upgrade & Sensor Options

The SURFCOM NEX series provides three functions: roughness, contour, and roughness/contour measurements.Necessary sensors can be selected according to measurement purposes. Separate detectors can be added later when necessary. For example, if you need a general roughness measuring machine, you may purchase the roughness detector only and use the system for roughness measurements. But later, if you also need wide-range roughness measurements such as roughness evaluations of round shapes, you may then add the hybrid detector unit and use several detectors interchangeably. The system can also be upgraded by installing a detector dedicated to contour measurements, 3D roughness measurement unit, etc.

This machine offers hybrid, roughness, contour, and combined functions. The SURFCOM NEX series allows you to select detectors by application. Detectors can be used as a single detector or combined with others to serve as multiple sensors.

The world-first hybrid detector with the dual sensor technology ACCRETECH has developed (patent obtained). Unlike the conventional detector, it has a high-accuracy linear Z scale for wide-range measurements and a high resolution differential inductance for narrow-range measurements. Using these two sensors simultaneously in measurement maximizes their performance.This new type hybrid detector is compatible with the previous model series (DX2/SD2 and after).

How Surfcom NEX 040/030 Work?

The SURFCOM NEX 040/030 works by using a precision stylus or probe to measure surface roughness, contour, and form features of a part. The diamond-tipped stylus moves across the surface, detecting microscopic peaks, valleys, and geometric deviations. Its magnetic linear drive ensures smooth, vibration-free motion for accurate measurements. Optional CNC automation allows fully automated positioning and multi-point measurement. The system’s software analyzes the stylus or sensor signals to calculate roughness parameters, contour profiles, and form deviations, displaying results on a user-friendly interface for inspection, quality control, and reporting.
