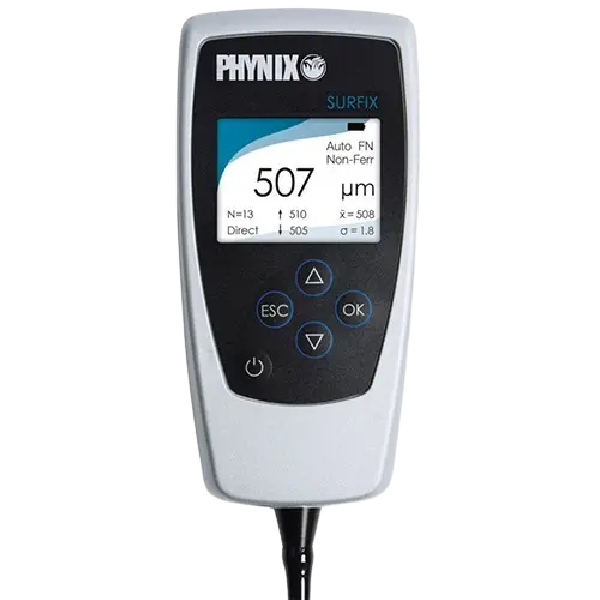

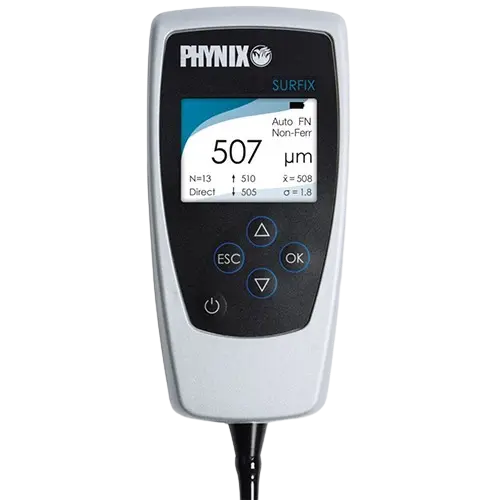

Surfix® EX
The outstanding feature of this new PHYNIX gauge is the brilliant color graphic display with improved text presentation and allows a variety of different operating languages. The standard now includes English, German, French, Italian, Spanish, Turkish, Czech and Chinese. The internal memory was greatly enlarged compared to the Surfix series and now allows the storage of up to 2,000 measured values. The connection to a computer is simply via USB 2.0. PHYNIX.connect, a data transmission program for all modern Windows systems, facilitates the transfer of measured values into Excel.
Find Metrology Solutions In Strategic Industrial Locations
Key Features of Sequential WDXRF Spectrometers in India
Dual Technology (Ferrous & Non‑Ferrous Measurement)
High‑Resolution Digital Display
Large Internal Memory & Statistics
USB/Bluetooth Data Connectivity
Wide Measurement Range with Interchangeable Probes
- In the electroplating industry.
- In the painting industry.
- In the automotive industry.
- in the chemical industry.
- In aerospace engineering.
- In shipbuilding.
- In research labs and universities.
- In the workshop.
- For consultants and assessors.
| Model | Surfix EX – FN / FN Basic |
| Application | For Ferrous and Non-Ferrous substrates |
| Range | 0 – 1500 μm |
| Accuracy | ± (1 μm + 1% of reading) |
| Data Memory | 2,000 readings, NOT AVAILABLE in “Basic” model |
| USB Data Interface | USB 2.0, NOT AVAILABLE in “Basic” model |
| Resolution | 0.1μm or < 0.2 % of reading |
| Statistics | Number of measured values, mean value, standard deviation, minimum and maximum measured value NOT AVAILABLE in “Basic” model |
| Display | High-resolution Colour display |
| Min radius for convex surface | 1.5 mm |
| Min radius for concave surface | 5 mm |
| Min measuring area | 5 mm X 5 mm |
| Minimum Substrate Thickness | Ferrous – 0.2 mm Non-Ferrous – 50 μm |
| Standards | DIN, ISO, ASTM, BS |
| Calibration | works calibration, zero calibration, one-foil calibration |
| Protection Class | IP 52 (proof against dust and dripping water) |
| Dimensions | 137mm x 66mm x 23mm |
| Warranty | 1 Years |
| Model | Surfix EX – F Basic |
| Application | For Ferrous substrates |
| Range | 0 – 1500 μm |
| Accuracy | ± (1 μm + 1% of reading) |
| Resolution | 0.1μm or < 0.2 % of reading |
| Display | High-resolution Colour display |
| Min radius for convex surface | 1.5 mm |
| Min radius for concave surface | 5 mm |
| Min measuring area | 5 mm X 5 mm |
| Minimum Substrate Thickness | Ferrous – 0.2 mm |
| Standards | DIN, ISO, ASTM, BS |
| Calibration | works calibration, zero calibration, one-foil calibration |
| Protection Class | IP 52 (proof against dust and dripping water) |
| Dimensions | 137mm x 66mm x 23mm |
| Warranty | 1 Years |
| Model | Surfix EX – N Basic |
| Application | For Non-Ferrous substrates |
| Range | 0 – 1500 μm |
| Accuracy | ± (1 μm + 1% of reading) |
| Resolution | 0.1μm or < 0.2 % of reading |
| Display | High-resolution Colour display |
| Min radius for convex surface | 1.5 mm |
| Min radius for concave surface | 5 mm |
| Min measuring area | 5 mm X 5 mm |
| Minimum Substrate Thickness | Non-Ferrous – 50 μm |
| Standards | DIN, ISO, ASTM, BS |
| Calibration | works calibration, zero calibration, one-foil calibration |
| Protection Class | IP 52 (proof against dust and dripping water) |
| Dimensions | 137mm x 66mm x 23mm |
| Warranty | 1 Years |
| Model | Surfix EX – FN / FN Basic |
| Application | For Ferrous and Non-Ferrous substrates |
| Range | 0 – 1500 μm |
| Accuracy | ± (1 μm + 1% of reading) |
| Data Memory | 2,000 readings, NOT AVAILABLE in Basic models |
| USB Data Interface | USB 2.0, NOT AVAILABLE in Basic models |
| Resolution | 0.1μm or < 0.2 % of reading |
| Statistics | Number of measured values, mean value, standard deviation, minimum and maximum measured value |
| Display | High-resolution Colour display |
| Min radius for convex surface | 1.5 mm |
| Min radius for concave surface | 5 mm |
| Min measuring area | 5 mm X 5 mm |
| Minimum Substrate Thickness | Ferrous – 0.2 mm Non-Ferrous – 50 μm |
| Standards | DIN, ISO, ASTM, BS |
| Calibration | works calibration, zero calibration, one-foil calibration |
| Protection Class | IP 52 (proof against dust and dripping water) |
| Dimensions | 137mm x 66mm x 23mm |
| Warranty | 2 Years |
- In the electroplating industry.
- In the painting industry.
- In the automotive industry.
- in the chemical industry.
- In aerospace engineering.
- In shipbuilding.
- In research labs and universities.
- In the workshop.
- For consultants and assessors.
| Model | Surfix EX – F / F Basic |
| Application | For Ferrous substrates |
| Range | 0 – 1500 μm |
| Accuracy | ± (1 μm + 1% of reading) |
| Resolution | 0.1μm or < 0.2 % of reading |
| Statistics | Number of measured values, mean value, standard deviation, minimum and maximum measured value |
| Data Memory | 2,000 readings, NOT AVAILABLE in Basic models |
| USB Data Interface | USB 2.0, NOT AVAILABLE in Basic models |
| Display | High-resolution Colour display |
| Min radius for convex surface | 1.5 mm |
| Min radius for concave surface | 5 mm |
| Min measuring area | 5 mm X 5 mm |
| Minimum Substrate Thickness | Ferrous – 0.2 mm |
| Standards | DIN, ISO, ASTM, BS |
| Calibration | works calibration, zero calibration, one-foil calibration |
| Protection Class | IP 52 (proof against dust and dripping water) |
| Dimensions | 137mm x 66mm x 23mm |
| Warranty | 2 Years |
| Model | Surfix EX – N / N Basic |
| Application | For Non-Ferrous substrates |
| Range | 0 – 1500 μm |
| Accuracy | ± (1 μm + 1% of reading) |
| Resolution | 0.1μm or < 0.2 % of reading |
| Statistics | Number of measured values, mean value, standard deviation, minimum and maximum measured value |
| Data Memory | 2,000 readings, NOT AVAILABLE in Basic models |
| USB Data Interface | USB 2.0, NOT AVAILABLE in Basic models |
| Display | High-resolution Colour display |
| Min radius for convex surface | 1.5 mm |
| Min radius for concave surface | 5 mm |
| Min measuring area | 5 mm X 5 mm |
| Minimum Substrate Thickness | Non-Ferrous – 50 μm |
| Standards | DIN, ISO, ASTM, BS |
| Calibration | works calibration, zero calibration, one-foil calibration |
| Protection Class | IP 52 (proof against dust and dripping water) |
| Dimensions | 137mm x 66mm x 23mm |
| Warranty | 2 Years |
How Surfix® EX Coating Thickness Gauge Work?
The Surfix® EX Coating Thickness Gauge works by using non‑destructive measurement principles to determine the thickness of coatings on different types of substrates. For ferrous (magnetic) materials, it employs magnetic induction, where changes in the magnetic field between the probe and the substrate caused by the coating are measured. For non‑ferrous (non‑magnetic) materials, it uses eddy current technology, which detects changes in induced electrical currents due to the coating layer. When the interchangeable probe is placed on the coated surface, the gauge measures these changes and converts them into a coating thickness value displayed on the screen. With internal data storage, statistics, and USB/Bluetooth connectivity, it’s ideal for quality control, inspection, and reporting of painted, plated, or protective coatings in industrial environments.
Locations We Serve
QS Metrology provides Surfix® EX Coating Thickness Gauge across India, serving all major industrial regions, including:
Delhi NCR, Rajasthan, Punjab, Uttar Pradesh, Himachal Pradesh, Uttarakhand, Jammu & Kashmir
Why Choose QS Metrology?
High-Precision Measurement
Advanced Probe & Software Technology
Durable & Reliable Design
Wide Industry Applications
Expert Support & Service
FAQs
It is used for non‑destructive measurement of coating thickness on metals and other coated surfaces in quality control and inspection.
It measures coatings on both ferrous (magnetic) and non‑ferrous (non‑magnetic) substrates using dual measurement technologies.
It uses magnetic induction on ferrous metals and eddy current technology on non‑ferrous metals to calculate the thickness of coating layers.
Yes — it features internal data memory, and results can be exported via USB or Bluetooth for reporting and analysis.
It can measure paint, plating, anodizing, powder coatings, and other protective layers across a wide thickness range.
Yes — it has a clear digital display and intuitive interface, making it suitable for both shop‑floor and field use.
