Key Features of Zeiss CMM DURAMAX in India
Robust Shop‑Floor Design for Harsh Environments
Fast & Flexible Single‑Point & Scanning Measurement
Optimal Measuring Volume with Small Footprint
Thermally Stable & Dust‑Protected Construction
Advanced Software & Automation Support

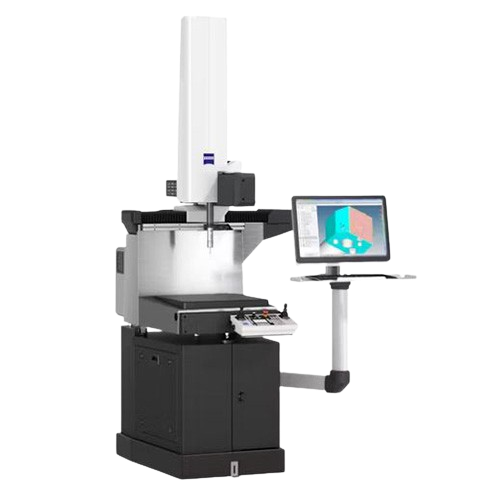

Zeiss DURAMAX
The ZEISS DuraMax is a highly robust and precise coordinate measuring machine (CMM) specifically designed for demanding at-line measurement directly within production environments. Unlike traditional CMMs that require controlled lab settings, the DuraMax is built to withstand harsh conditions, including high temperatures, dust, and vibrations, making it an ideal choice for shop floor quality control.
Find Metrology Solutions In Strategic Industrial Locations
- Robustness and environmental resistance: The DuraMax boasts a robust design with high dust and moisture protection (IP54 rated ShopFloor base) and thermal stability, allowing it to perform accurately even in challenging environments. The DuraMax HTG model can operate in an even wider temperature range (15°C to 40°C).
- High precision and advanced scanning: Equipped with the ZEISS VAST XXT-Sensor, the DuraMax delivers highly accurate measurements, including both single-point probing and high-density scanning of contours and free-form surfaces. This eliminates the need for numerous dedicated gauges and manual inspection tools, increasing efficiency and detail in quality control.
- Efficiency and speed: The DuraMax is designed for optimal measurement volume and footprint ratio, saving valuable space on the shop floor. Features like the ZEISS Duplex System for increased throughput and the option for four-axis measurement with a rotary table further reduce operating times and maximize efficiency.
- Ease of use and automation: The machine can be loaded from multiple sides, features a practical stylus rack, and requires minimal space, making it easy to integrate into existing production lines. The DuraMax can be easily automated with the ZEISS Automation Interface for seamless integration into various processes.
- Flexible and future-proof: Object-oriented programming using ZEISS CALYPSO software enables flexible measurement plans that can be easily adapted to new parts or engine generations. This adaptability helps reduce costs associated with fixed gauges and specialized tooling
The ZEISS DuraMax is suitable for a wide range of industries and processes, including:
- Automotive (e.g., engine production)
- Medical/Pharmaceutical
- Aerospace
- Electronics
- Plastics industry
- Metal product manufacturing
- Milling, drilling, turning, grinding, additive manufacturing, and injection molding processes
The DuraMax allows manufacturers to bring coordinate measuring technology directly to the production floor, reducing the need for separate measuring rooms and enabling faster, more accurate, and reliable quality control, ultimately leading to higher efficiency and reduced costs
How Zeiss CMM DURAMAX Work?
The ZEISS CMM DuraMax works by using a precision probe mounted on a bridge or gantry structure to measure the 3D coordinates of points on a workpiece. The probe can be touch-trigger or scanning type, detecting surface points with high accuracy. As the probe moves along the X, Y, and Z axes, it captures the spatial coordinates of the part’s features. The data is processed by advanced metrology software, which calculates dimensions, geometries, and tolerances according to CAD models or engineering drawings. DuraMax’s robust shop-floor construction, thermal stability, and dust protection allow accurate measurements in industrial environments, while optional automation and software integration enable efficient inspection of complex components for quality control.
Locations We Serve
QS Metrology provides Zeiss CMM DURAMAX across India, serving all major industrial regions, including:
Delhi NCR, Rajasthan, Punjab, Uttar Pradesh, Himachal Pradesh, Uttarakhand, Jammu & Kashmir
Why Choose QS Metrology?
High-Precision Measurement
Advanced Probe & Software Technology
Durable & Reliable Design
Wide Industry Applications
Expert Support & Service
FAQs
It is used for high‑accuracy 3D dimensional measurement and inspection of components in quality control and engineering workflows.
It is designed for shop‑floor environments, including manufacturing areas with dust, temperature variations, and vibration.
It uses a precision probe (touch or scanning) to capture 3D coordinates of part features as it moves along the X, Y, and Z axes.
It can measure dimensions, geometric tolerances, surface points, hole positions, and complex shapes with high precision.
Yes — it integrates with CAD models and inspection plans so measurements can be compared directly with design tolerances.
It uses ZEISS metrology software (e.g., CALYPSO or Zeiss Inspect) for programming, data capture, analysis, and reporting.
Industries We Serve
- Space-saving design for a small footprint
- Generous and easily accessible measuring volume
- Loading from three sides and from above
- No compressed air required
- Fast scanning with ZEISS VAST XXT
- Single-point measurements with ZEISS VAST probing
- ZEISS Duplex System for increased throughput
- Four-axis measurement with rotary table
- Dust and moisture protection
- IP54 rated ShopFloor base
- Thermal stability due to glass ceramic scales
- Linear drive nut and ball bearing guiding system with covered guiding in all axes
- Passive vibration damping as standard
- Precise measurement at high temperatures
- Zerodur scales for smallest possible heat expansion
- Temperature sensors for workpiece temperature correction
- Additional filter pads in the X- and Y-axis to protect against dirt and dust
