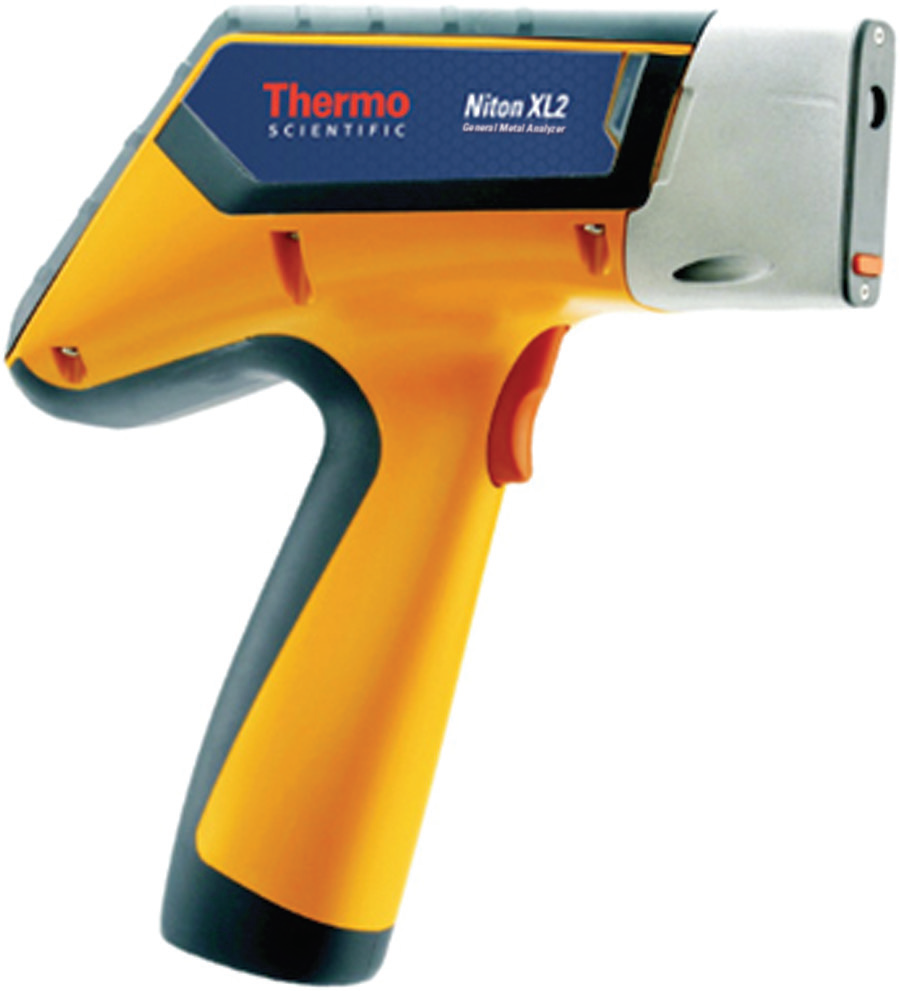

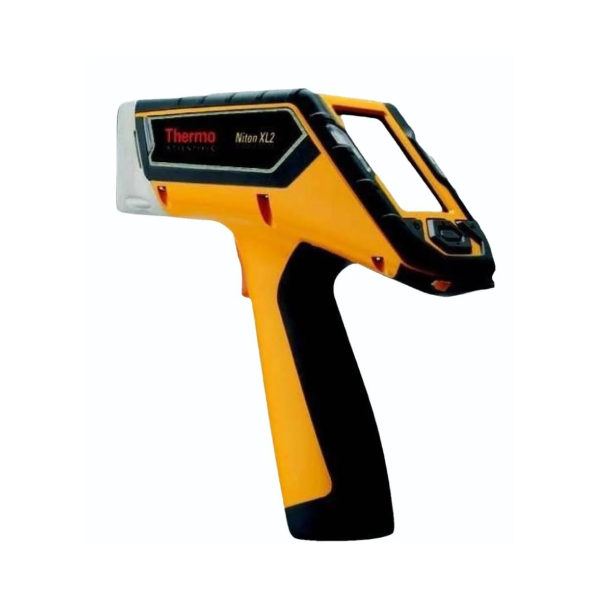

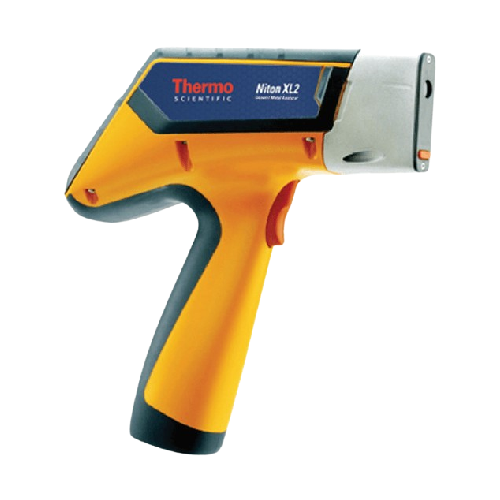

Niton XL2 100G
General Metal Analyzer
With point-and-shoot simplicity, you can view the alloy grade and chemistry on the built-in, color, touch-screen display.
The Niton XL2 100G stands far above the competition, with its many standard features and available options. By utilizing the standard Thermo Scientific Niton Data Transfer (NDT©) PC software suite to customize the instrument, you can set operator permissions, generate custom reports, print certificates of analysis personalized with your own company logo, or remotely monitor and operate the instrument hands-free from your PC. Integrated USB and Bluetooth® communications provide direct data transfer to your PC or networked storage device, eliminating the cumbersome data synchronization procedures required by Windows Mobile®-based XRF analyzers.
| Weight | 3 lbs 5.8 oz (1.53 kg) |
| Dimensions | 10.25 x 11 x 4 in. (256 x 275 x 100 mm) |
| Tube | Ag anode 38kV maximum, 80 uA maximum |
| Detector | High-performance semiconductor |
| System Electronics | 400 MHz ARM 11 CPU 300 MHz dedicated DSP 80 MHz ASICS DSP for signal processing 4096 channel MCA 64 MB internal system memory/128 MB internal user storage |
| Display | Fixed angle, color, touch-screen display |
| Standard Analytical Range | 25 elements from Ti to Bi |
| Data Storage | Internal >10,000 readings with spectra |
| Data Transfer | USB, Bluetooth™, and RS-232 serial communication |
| Security | Password-protected user security |
| Mode | Alloy Modes: Metal Alloy |
| Data Entry | Touch-screen keyboard User-programmable pick lists Optional wireless remote barcode reader |
| Standard Accessories | Locking shielded carrying case Shielded belt holster One 6-cell Li-ion battery pack 110/220 VAC battery charger/ AC adaptor PC connection cables (USB and RS-232) Niton Data Transfer (NDT) PC software Safety lanyard Check samples/standards |
| Optional Features and Accessories | Thermo Scientific portable test stand, stationary (bench-top) stand, mobile test stand |
| Licensing/Registration | Varies by region. Contact your local distributor |
| Compliance | CE, RoHS |
• Analyze metal alloys for scrap recycling or final product QC
• Rapid alloy ID for incoming QC
