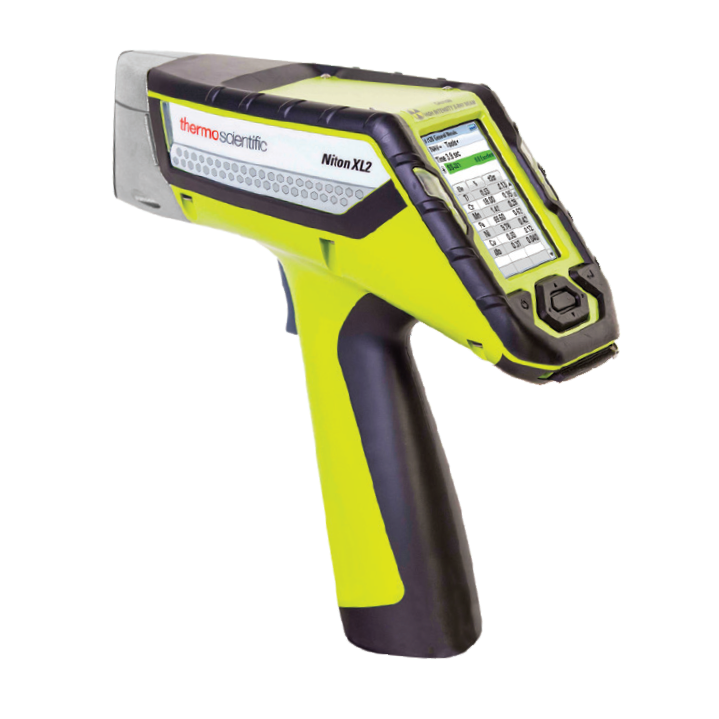

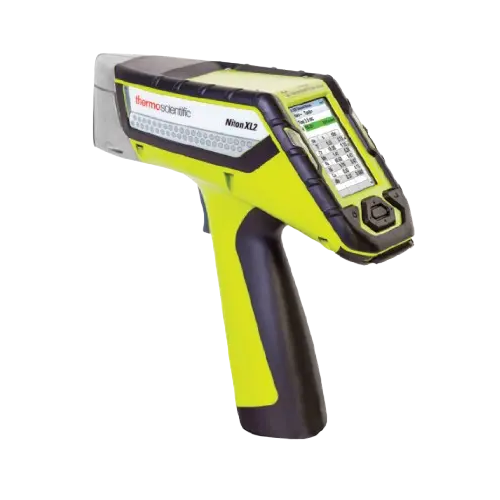

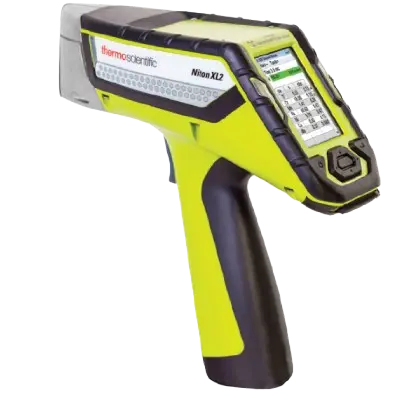

Niton XL2 PLUS
Key Features of Niton XL2 PLUS Portable & Handheld XRF Analyzers in India
Wide Elemental Analysis Range (Mg to U Detection)
Silicon Drift Detector (SDD) with ProGuard Protection
Integrated CCD Micro Camera for Positioning
Hot‑Swap Battery for Uninterrupted Field Use
Rugged IP54‑Rated Design for Dust & Splash Protection
Find Metrology Solutions In Strategic Industrial Locations
- Verification of metals and alloys in manufacturing
- Quality Assurance testing for positive material identification
- Point-and-shoot sorting at scrap recycling operations
- Coating thickness measurements from single element layers
- Precious metal assay of bullion and jewelry
- Geochemical analysis for ore trading and grade control
- On-site heavy metal screening of polluted soils
- Lead in paint inspection of industrial facilities
- Screening of hazardous substances in consumer goods
| Weight | 3.4 lbs with battery (1.53 kg) |
| Dimensions | 10 x 10.8 x 3.9 in (25.6 x 27.5 x 10 cm) |
| X-Ray Source | X-Ray Tube: Ag anode (6-45kV, 1-200uA, 2W max) Dynamically adjustable current for optimal sensitivity on every analysis |
| Detector | Silicon drift detector (SDD) Detector ProGuard protection included |
| Spot Size | 8 mm collimation |
| Analytical Range | Mg-U |
| Calibration Modes | General Metals, Precious Metals, Coatings, Mining, Soils, Electronic Alloys, Plastics, Industrial Lead in Paint, Lead in Paint Products |
| Libraries | Default alloy libraries based on SAE, AISI, ASTM, AA standards Users may create and edit libraries |
| System Check | Built-in standardization via automatic system check |
| IP Rating | IP54 (splash and dust proof) |
| Operating Environment | Temperature: -10°C to 50°C Humidity: 0% to 80% relative humidity non-condensing |
| Display | Fixed angle, color, resistive touchscreen display |
| Power | 7.4V lithium-ion battery, or 12V DC, 3A, 36W power supply Hot swap functionality keeps analyzer powered during battery replacements |
| Camera | Integrated CCD micro camera for locating and recording measurement positions |
| Global Positioning System | Optional external GPS (via Bluetooth) |
| Bluetooth | Supports print functionality, external GPS connectivity and barcode reader |
| Memory / Data Storage | 64 MB internal system memory / 128 MB internal user storage Stores approximately 10,000 readings with spectra (fewer if images are saved) |
| Data Entry | Touchscreen keyboard User customizable data entry Optional wireless remote barcode reader |
| Data Transfer | USB, Bluetooth, and RS-232 serial communication |
| Operating System | Proprietary |
| Support Software | Niton Data Transfer (NDT) PC software |
| Security | Password-protected user security |
| Languages | English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Italian, Czech |

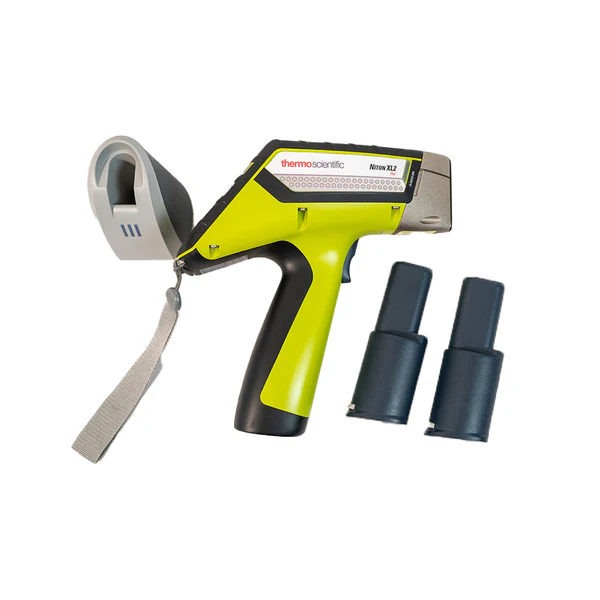

| Standard Accessories | Locking shielded carrying case Two (2) lithium-ion battery packs One (1) 110/220 VAC battery charger/ AC adaptor Check samples Belt holster Safety lanyard PC connection cables (USB and RS-232) |
| Optional Accessories | Thermo Scientific™ portable test stand, Thermo Scientific™ mobile test stand, Thermo Scientific™ field mate test stand, Thermo Scientific™ soil guard |
| Compliance | CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1, UL 61010-1 |
| Licensing / Registration | Varies by region. Contact your local distributor. |
How Niton XL2 PLUS Portable & Handheld XRF Analyzers Work?
The Niton XL2 PLUS Portable & Handheld XRF Analyzer works by directing X-rays onto a material’s surface, which excites the atoms in the sample to emit secondary (fluorescent) X-rays. The device’s Silicon Drift Detector (SDD) measures the energy and intensity of these fluorescent X-rays to determine the elemental composition of the sample instantly. Its built-in micro camera helps accurately position the analyzer, while the hot-swap battery and rugged IP54 design make it ideal for rapid, non-destructive testing in the field or industrial environments.
Locations We Serve
QS Metrology provides Niton XL2 PLUS Portable & Handheld XRF Analyzers across India, serving all major industrial regions, including:
Delhi NCR, Rajasthan, Punjab, Uttar Pradesh, Himachal Pradesh, Uttarakhand, Jammu & Kashmir
Why Choose QS Metrology?
High-Precision & Reliable Technology
International-Standard Instruments
Expert Technical Support & Training
Competitive Pricing & Strong After-Sales Service
Customized Solutions for Industry Needs
FAQs
It performs rapid, non‑destructive elemental analysis on metals, alloys, soils, coatings, and industrial samples, detecting elements from Magnesium (Mg) to Uranium (U).
The device delivers near‑instant quantitative results with high sensitivity using its Silicon Drift Detector (SDD) and fundamental parameter calibration.
Yes — it has an intuitive touchscreen with directional keys and an integrated CCD micro camera to help position the measurement spot easily.
Absolutely — it’s widely used for positive material identification (PMI), alloy verification, recycling, and QA/QC in manufacturing and field environments.
Yes — it stores thousands of readings with spectra and supports data export via USB, Bluetooth, and RS‑232 for reporting and analysis.
The analyzer is rugged, IP54‑rated against dust and splash, and has a hot‑swap battery system for uninterrupted field operation.
