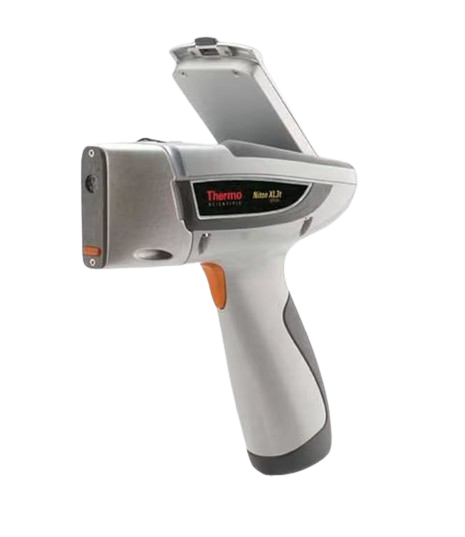

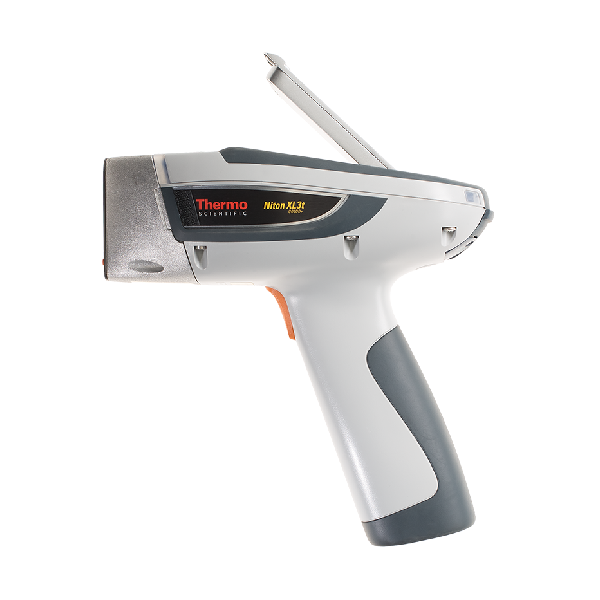

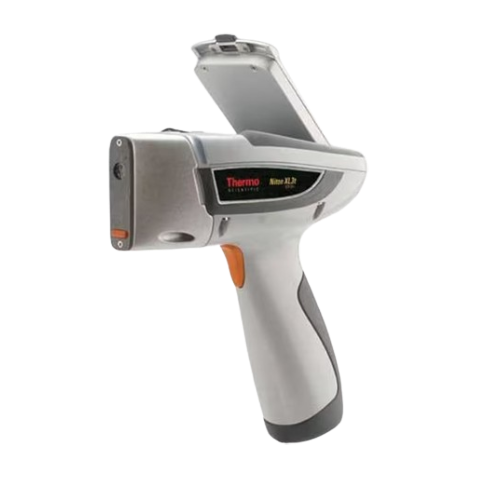

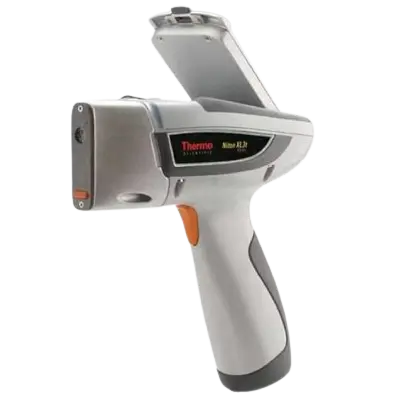

Niton XL3t GOLDD+
Thermo Scientific Niton XL3t GOLDD+ analyzers provide you with many distinct advantages:
• Superior light element detection (Mg, Al, Si, P, S) without helium purge or vacuum
• High count rate for lower detection limits and faster analysis
• True lab-quality performance in a handheld instrument, including tramp/trace elements
• Analyze metal alloys
• Carry out mining exploration and mapping
• Detect soil contaminants
• Test electronics and consumer goods for prohibited substances
- Standard analytical range: Up to 30 elements from Mg to U (varies by application).
- Most powerful x-ray tube on the market for handheld XRF analysis.
- Point and shoot simplicity- very easy to use even by nontechnical personnel.
- Rugged design for real-world industrial environments.
- Nondestructive analysis with near instantaneous results.
- Sealed against moisture and dust.
- Ergonomically designed.
- Daylight-readable icons.
- Incorporates multi-language options.
- Color, touch-screen display.
- Standard Thermo Scientific™ Niton Data Transfer (NDT™) PC software suite allows you to set operator permissions, generate custom reports, print certificates of analysis, or remotely monitor, and operate the instrument hands-free from your PC.
- Integrated USB and Bluetooth™ communications provide direct data transfer to your PC or networked storage device. Optional accessories include Bluetooth barcode reader, Bluetooth printer and Bluetooth GPS.
| Weight | < 3.0 lbs (< 1.3 kg) |
| Dimensions | 9.60 x 9.05 x 3.75 in. (244 x 230 x 95.5 mm) |
| Tube | Ag anode (6-50 kV, 0-200 μA max) |
| Detector | Geometrically Optimized Large Area Drift Detector (GOLDD) Proprietary detector with 180,000 throughput cps Resolution: < 185 eV @ 60,000 cps @ 4µ sec shaping time |
| System Electronics | 533 MHz ARM 11 CPU 300 MHz dedicated DSP 80 MHz ASICS DSP for signal processing 4096 channel MCA 32 MB internal system memory / 128 MB internal user storage |
| Display | Tilting, color, touch-screen display |
| Standard Analytical Range | Up to 30 elements from Mg to U (varies by application) |
| Optional Light Elements | Ultra-low light element detection via He purge |
| Data Storage | Internal >10,000 readings with spectra |
| Data Transfer | USB, Bluetooth, and RS-232 serial communication |
| Security | Password-protected user security |
| Mode (Varies by application) | Alloy Modes: Metal Alloy, Electronics Alloy, Precious Metals Bulk Modes: Soil, Mining, TestAll™ Plastic Modes: RoHS Plastics, Toy & Consumer Goods Plastics, TestAll, Painted Products Custom Modes: Upon request (based on application feasibility) |
| Data Entry | Touch-screen keyboard User-programmable pick lists Optional wireless remote barcode reader |
| Standard Accessories | Integrated CCD camera for locating and storing images Locking shielded carrying case Shielded belt holster Two lithium-ion battery packs 110/220 VAC battery charger/AC adaptor PC connection cables (USB and RS-232) Niton Data Transfer (NDT) PC software Safety lanyard Check samples/standards |
| Optional Features and Accessories | 3 mm small-spot collimation Thermo Scientific SmartStand™ portable test stand, stationary (bench-top) test stand, mobile test stand, Field Mate™ Thermo Scientific Extend-a-Pole™ extension pole Welding mask Thermo Scientific HotFoot™ hot surface adapter Soil testing guard |
| Licensing/Registration | Varies by region. Contact your local distributor. |
| Compliance | CE, RoHS |
