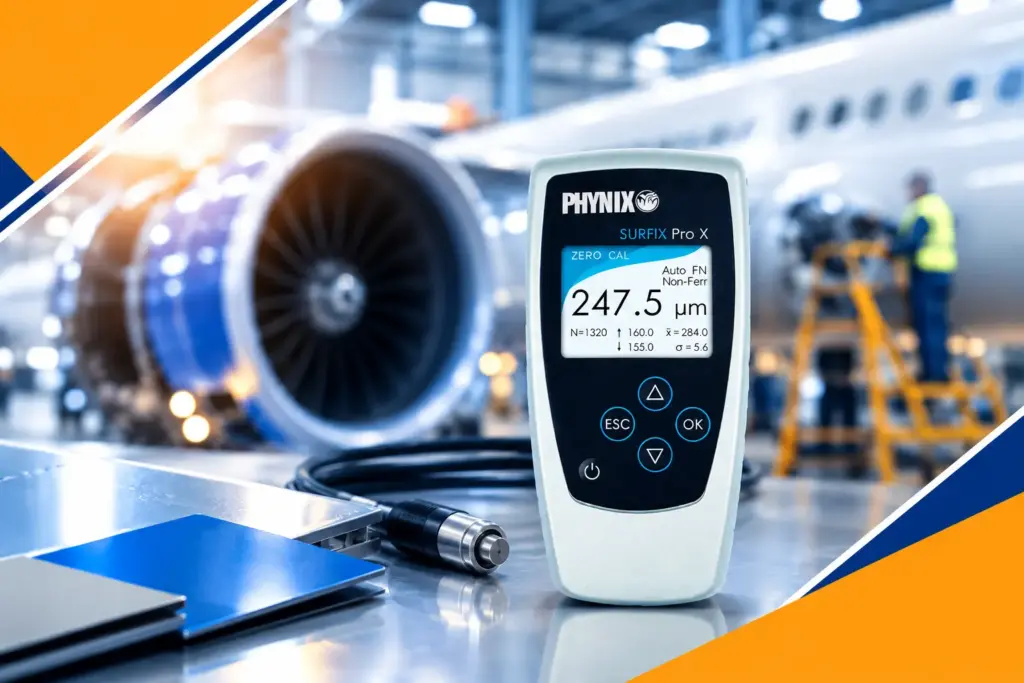

What Are Coating Thickness Gauges in Aerospace Manufacturing?
Aerospace components often receive protective, functional or finishing coatings designed to help protect the underlying material and meet defined manufacturing requirements.
However, applying a coating is only one part of the process.
The manufacturer also needs to verify whether the coating has been applied at the specified thickness.
This is where coating thickness gauges become important.
A coating thickness gauge is a measurement instrument used to determine the thickness of a coating without damaging the inspected surface when the applicable measurement method is non-destructive.
In aerospace manufacturing, coating inspection can be relevant for components made from materials such as steel, aluminium and other metallic substrates, depending on the coating system and inspection specification.
The objective is not simply to make a coating thicker.
The objective is to achieve the required coating thickness consistently and verify it with objective measurement data.
A coating thickness gauge can therefore help quality teams move from visual judgement to quantitative inspection.
Why Is Coating Thickness Important for Aerospace Protective Coatings?
Aerospace components can operate in demanding environments involving temperature variation, moisture, chemicals, mechanical loading and other environmental conditions.
Protective coatings can form part of the overall surface-protection strategy.
But coating performance depends on more than simply selecting the correct coating material.
The applied thickness also needs to meet the relevant specification.
What Happens When an Aerospace Coating Is Too Thin?
If a coating is below the specified thickness, the component may not receive the intended level of surface protection.
Potential concerns can include:
- Reduced protective coverage
- Increased exposure of the substrate
- Premature coating deterioration
- Non-conformance with the specified coating requirement
- Additional inspection or rework
- Increased maintenance requirements
The actual performance depends on the coating chemistry, substrate, environment, application method and specified requirements.
This is why coating thickness should be measured rather than estimated.
What Happens When an Aerospace Coating Is Too Thick?
Over-application can create a different set of problems.
Excessive coating can result in:
- Unnecessary material consumption
- Increased coating cost
- Longer curing or processing requirements
- Uneven coating appearance
- Potential cracking or other application defects
- Additional rework
Therefore, the quality objective is not maximum thickness.
It is controlled thickness within the specified range.
What Problems Can Incorrect Aerospace Coating Thickness Cause?
Aerospace manufacturers need to control coating application carefully because coating defects discovered late in the manufacturing process can be expensive to correct.
How Can Inconsistent Coating Thickness Affect Quality?
Inconsistent application can create areas where the coating thickness differs significantly from one location to another.
For example, complex components may have:
- Edges
- Corners
- Curved surfaces
- Recesses
- Machined features
- Difficult-to-access areas
These areas may behave differently during coating application.
Without measurement, it can be difficult to determine whether the coating process is producing consistent results.
How Can Incorrect DFT Increase Rework?
If a coated aerospace component fails inspection, the manufacturer may need to investigate the coating application, prepare the surface again and repeat part or all of the coating process.
This can increase:
- Labour
- Material consumption
- Inspection time
- Production lead time
- Risk of delivery delays
A DFT meter helps identify thickness variation earlier so that the manufacturer can make informed decisions before the issue becomes a larger production problem.
How Does a DFT Meter Improve Aerospace Coating Inspection?
A DFT meter, or Dry Film Thickness meter, is designed to measure the thickness of a dry coating.
For aerospace quality teams, one of its biggest advantages is that it turns coating thickness into measurable data.
Instead of asking:
“Does the coating look thick enough?”
The inspector can ask:
“What is the measured coating thickness at this inspection location?”
That distinction is important for controlled manufacturing.
How Does a DFT Meter Help Inspectors?
A suitable DFT meter can help inspectors:
- Take measurements quickly
- Verify specified coating thickness
- Identify local variations
- Compare readings across inspection locations
- Detect potential under-coating
- Detect potential over-coating
- Record measurement results
- Support quality documentation
The measurement procedure should be established according to the coating specification, substrate, instrument capability and applicable inspection requirements.
How Does a Coating Thickness Tester Work?
A coating thickness tester determines the thickness of a coating using a measurement principle appropriate to the substrate and coating combination.
For metallic substrates, common principles include magnetic induction and eddy-current measurement.
How Does Magnetic Induction Measurement Work?
When a non-magnetic coating is applied over a ferromagnetic substrate, magnetic induction can be used to determine coating thickness.
The probe is placed against the coated surface and the instrument evaluates the response to determine the coating thickness.
How Does Eddy-Current Measurement Work?
For suitable non-ferrous conductive substrates, eddy-current technology can be used to measure coating thickness.
The instrument detects changes associated with the distance between the probe and the conductive substrate.
Why Is Measurement Technology Important?
The correct measurement principle depends on factors such as:
- Substrate material
- Coating material
- Coating thickness
- Component geometry
- Measurement location
- Required accuracy
- Inspection environment
This means aerospace manufacturers should select a coating thickness tester according to the actual application rather than simply choosing a gauge based on price or display features.
Which Aerospace Components Need Coating Thickness Inspection?
Not every aerospace component requires the same coating inspection procedure.
The applicable inspection requirements should always be determined from the component specification, drawing, coating system and quality requirements.
Where coating thickness is a defined characteristic, measurement may be relevant for components such as:
Aerospace Structural Components
Structural components may receive protective coatings as part of their surface-treatment process.
Thickness inspection can help verify that the applied coating meets the specified requirement.
Aircraft Engine-Related Components
Certain engine-related components may use protective or functional coatings that require controlled application.
Where thickness is specified, a coating thickness tester can help verify the applied layer.
Landing Gear and Mechanical Components
Large mechanical components and assemblies may have protective surface treatments.
Measurement can help identify variation across different inspection locations.
Hydraulic and Actuation Components
Precision components used in hydraulic or actuation systems may have controlled surface treatments.
Coating thickness measurement can form part of the inspection process where specified.
Aerospace Defence Components
Defence-related components can also use protective coatings for defined applications.
The inspection method should be selected according to the component, coating system and applicable requirements.
How Do Coating Thickness Gauges Improve Corrosion Protection?
One of the key reasons protective coatings are used on metallic components is to provide a barrier between the substrate and the surrounding environment.
If the coating is insufficient, the intended protective function may not be achieved.
A coating thickness gauge allows inspectors to verify whether the coating has been applied within its specified thickness range.
How Does Thickness Measurement Help Identify Weak Areas?
Inspectors can define measurement locations across the component rather than relying on one reading.
For example, inspection points may be selected across:
- Flat surfaces
- Edges
- Corners
- Curved areas
- High-risk locations
- Areas identified by the coating specification
Multiple readings provide a better picture of coating consistency than a single measurement.
Why Is Measurement Location Important?
A coating may not be perfectly uniform across an entire component.
Factors such as spraying direction, component orientation, geometry and operator technique can influence the applied layer.
A structured measurement plan helps quality teams identify this variation.
How Can a DFT Meter Prevent Under-Coating and Over-Coating?
The purpose of a DFT meter is not simply to detect thin coatings.
It can also identify areas where the coating has been applied excessively.
How Does Under-Coating Affect Aerospace Components?
Under-coating can mean that the component does not meet the specified protective coating requirement.
This can trigger:
- Rework
- Recoating
- Additional inspection
- Potential rejection
How Does Over-Coating Affect Aerospace Components?
Over-coating can increase material consumption and may create application or curing issues depending on the coating system.
For manufacturers working with expensive aerospace coatings, unnecessary coating consumption can also increase production costs.
How Does a Coating Thickness Tester Help Balance Both Risks?
By measuring actual coating thickness, the quality team can identify whether the process is producing results within the required range.
This creates a feedback loop:
Apply coating → Measure DFT → Identify variation → Correct process → Recheck
The exact process should be established according to the manufacturer’s coating procedure and applicable specifications.
How Does Coating Thickness Measurement Help Control Multi-Layer Coatings?
Some aerospace coating systems involve multiple layers rather than a single coating.
For example, a coating system may include different layers serving different functions.
The total coating thickness and, where required, individual layer thickness can become important inspection considerations.
Why Is Multi-Layer Coating Inspection More Challenging?
Multiple layers can create additional measurement considerations.
The inspector may need to understand:
- Substrate type
- Number of coating layers
- Layer materials
- Total coating thickness
- Required measurement method
- Whether individual layers need to be distinguished
A suitable coating thickness tester should therefore be selected according to the actual coating system.
How Can a DFT Meter Support Multi-Layer Coating Control?
Depending on the instrument and measurement technology, coating thickness measurement can provide useful data for evaluating the applied coating system.
The measurement method should always be validated for the specific coating/substrate combination rather than assumed to work universally.
How Can a Coating Thickness Tester Reduce Aerospace Rework?
Rework is particularly costly when a component has already passed through several manufacturing stages.
Consider a simplified process:
Machining → Surface preparation → Coating → Curing → Inspection → Assembly
If a coating-thickness problem is discovered at final inspection, the component may need to return to an earlier stage.
A coating thickness tester can be integrated into the coating inspection process to identify deviations sooner.
What Does Early Measurement Help Manufacturers Do?
Early verification can help:
- Detect process variation
- Prevent large batches from progressing with the same problem
- Reduce unnecessary recoating
- Reduce material waste
- Improve production planning
- Support corrective-action investigations
The gauge itself does not prevent coating defects.
Its value comes from providing fast, objective measurement information that enables better process decisions.
Why Is Non-Destructive Coating Measurement Important in Aerospace?
Aerospace components can be expensive and may require significant machining and finishing work before coating.
Damaging a finished component simply to measure coating thickness would be undesirable in many applications.
This is why non-destructive measurement can be valuable.
How Does Non-Destructive Measurement Improve Inspection?
A suitable non-destructive coating thickness gauge allows inspectors to obtain thickness information without cutting, stripping or otherwise damaging the inspected area.
This means the same component can continue through its intended manufacturing or assembly process after inspection, subject to the applicable quality procedure.
Where Can Non-Destructive DFT Measurement Be Useful?
It can be particularly useful for:
- Finished aerospace components
- Production-line inspection
- Incoming inspection
- Final quality inspection
- Supplier inspection
- Field or maintenance-related inspection where applicable
How Can Coating Thickness Gauges Improve Process Control?
Coating thickness measurement should not be limited to final inspection.
It can also provide feedback on the coating process.
Suppose an aerospace coating line begins producing readings that consistently move toward the upper or lower specification limit.
That information can prompt an investigation.
What Can Cause Coating Thickness Variation?
Possible contributors can include:
- Spray technique
- Application distance
- Spray angle
- Coating viscosity
- Surface preparation
- Component geometry
- Coating equipment settings
- Operator technique
- Environmental conditions
The actual cause needs to be established through process investigation.
How Can Measurement Data Support Process Improvement?
A quality team can compare measurements across:
- Different components
- Different production batches
- Different coating operators
- Different coating shifts
- Different locations on a component
This can reveal patterns that may not be visible through visual inspection alone.
What Should Aerospace Manufacturers Consider When Choosing a DFT Meter?
Choosing a DFT meter requires more than looking at measurement range.
The instrument needs to match the actual coating inspection application.
What Substrate Will Be Measured?
Determine whether the components have:
- Ferrous substrates
- Non-ferrous substrates
- Multiple substrate types
The measurement technology should be compatible with the substrate.
What Coating Will Be Measured?
Consider whether the application involves:
- Paint
- Powder coating
- Plating
- Anodized layers
- Protective coatings
- Other specified surface treatments
What Measurement Range Is Required?
The expected coating thickness should fall within the instrument’s suitable measurement range.
Choosing an instrument with an inappropriate range can compromise its usefulness.
Is Probe Flexibility Important?
Aerospace components can have complex shapes and difficult-to-access inspection locations.
Different probe configurations may therefore be useful for different applications.
Does the Instrument Support Data Management?
For quality departments, measurement data can be important for:
- Inspection reports
- Batch records
- Statistical review
- Traceability
- Process analysis
Depending on the selected instrument, features may include internal memory, statistics and USB/Bluetooth data transfer.
What About Calibration and Technical Support?
The instrument should be supported by an appropriate calibration and verification process.
Manufacturers should also evaluate:
- Installation support
- Calibration services
- Operator training
- Application support
- After-sales service
How Can Coating Thickness Testing Support Aerospace Quality Documentation?
Aerospace quality processes depend heavily on objective inspection records.
A coating thickness tester can provide numerical measurement results that can be incorporated into inspection documentation.
A useful inspection record may include:
Component identification
Coating specification
Measurement location
Measured thickness
Acceptance range
Date
Operator
Instrument identification
Calibration status
Why Is Digital Data Useful for Coating Inspection?
Digital measurement data can make it easier to:
- Review inspection results
- Identify trends
- Compare batches
- Investigate non-conformances
- Support supplier discussions
- Maintain quality records
Some PHYNIX instruments available through QS Metrology also provide data-storage and transfer capabilities, depending on the model.
This can make the measurement process more suitable for structured QA workflows.
What Is a Practical Coating Thickness Inspection Workflow?
A consistent inspection procedure is essential if coating thickness measurements are to provide meaningful process information.
Step 1: What Coating Requirement Needs to Be Verified?
Start with the relevant drawing, coating specification, customer requirement or process document.
Identify:
- Required thickness
- Measurement locations
- Acceptance criteria
- Number of readings
- Applicable measurement method
Step 2: How Should the Component Be Prepared?
Ensure the measurement surface is suitable for inspection according to the applicable procedure.
Surface contamination, damage or unsuitable measurement locations can affect the reliability of readings.
Step 3: Which Coating Thickness Gauge Should Be Used?
Select an instrument and probe compatible with:
- Substrate
- Coating
- Thickness range
- Component geometry
- Measurement environment
Step 4: How Should the DFT Meter Be Verified?
Perform the required instrument verification or calibration procedure before inspection.
The exact procedure should follow the instrument manufacturer’s instructions and the applicable quality system.
Step 5: Where Should Measurements Be Taken?
Use predefined measurement locations rather than selecting locations randomly.
This improves consistency between inspections.
Step 6: How Should the Results Be Recorded?
Record the readings along with the relevant component and inspection information.
Step 7: What Should Happen if a Reading Is Outside the Specification?
The component should be handled according to the applicable non-conformance procedure.
The quality team may need to:
- Verify the measurement
- Inspect additional locations
- Investigate the coating process
- Determine the extent of the issue
- Initiate rework if required
How Can QS Metrology Support Aerospace Coating Inspection?
QS Metrology supplies PHYNIX coating thickness gauges for industrial coating measurement applications.
Its portfolio includes solutions such as:
- Surfix® Pro X
- Surfix® EX
- Surfix® SX
- Special-purpose coating thickness gauges
Depending on the selected model and configuration, the instruments support non-destructive coating measurement on suitable ferrous and non-ferrous substrates using appropriate measurement technologies.
Features available across the portfolio include high-resolution displays, different probe/configuration options, measurement data storage and data transfer capabilities on applicable models.
QS Metrology also supports customers with installation, calibration, training and technical assistance.
Why Does Application Support Matter in Aerospace Coating Measurement?
A coating thickness gauge is only one component of a successful inspection system.
The manufacturer also needs:
- Correct instrument selection
- Appropriate probe selection
- Suitable measurement procedure
- Calibration and verification
- Operator training
- Proper documentation
For aerospace manufacturers, these factors can help create a more controlled and repeatable coating inspection process.
What Are the Benefits of Coating Thickness Gauges for Aerospace Manufacturing?
A properly selected coating thickness gauge can support aerospace manufacturers in several areas.
Aerospace Coating Challenge | How Measurement Helps |
Under-coating | Identifies areas below the specified thickness |
Over-coating | Helps identify excessive coating application |
Uneven coating | Reveals variation between inspection locations |
Material waste | Helps control unnecessary over-application |
Rework | Detects thickness deviations before they progress further |
Manual judgement | Replaces visual estimation with numerical measurement |
Complex components | Allows defined inspection locations to be measured |
Quality documentation | Provides objective measurement results |
Process variation | Creates data for process investigation |
Non-destructive inspection | Allows thickness verification without damaging the surface |
The key benefit is not simply obtaining a thickness number.
It is creating a measurable and repeatable coating-quality control process.
How Can Aerospace Manufacturers Build a Better Coating Thickness Control Strategy?
A strong coating inspection strategy connects the coating process with measurement and process improvement.
Manufacturers can establish a structured approach by:
- Defining coating specifications.
- Identifying critical inspection locations.
- Selecting the appropriate measurement technology.
- Choosing the correct coating thickness gauge.
- Establishing verification and calibration procedures.
- Training coating and QA personnel.
- Standardizing measurement locations.
- Recording measurement results.
- Reviewing thickness variation.
- Investigating recurring deviations.
- Feeding measurement results back into the coating process.
This turns coating thickness measurement into an active part of quality management rather than simply a final inspection step.
Conclusion
Aerospace protective coating quality depends on more than applying the correct coating material.
The coating also needs to be applied consistently and verified against the relevant specification.
Coating thickness gauges provide aerospace quality teams with a practical way to turn coating thickness into measurable inspection data.
A suitable DFT meter can help identify under-coating, over-coating and thickness variation, while a coating thickness tester can support non-destructive inspection of finished components.
By incorporating coating thickness measurement into the production and quality workflow, aerospace manufacturers can improve process visibility, reduce unnecessary rework, control coating consumption and maintain more consistent inspection records.
The most effective approach is to select the measurement technology according to the actual substrate, coating system, thickness range and inspection requirements.
Ready to Improve Aerospace Coating Inspection?
Discuss Your Aerospace Coating Thickness Measurement Requirement with QS Metrology.
Explore the appropriate PHYNIX coating thickness measurement solution for your aerospace application and speak with a metrology specialist about your substrate, coating and inspection requirements.
Frequently Asked Questions
What are coating thickness gauges used for in aerospace manufacturing?
Coating thickness gauges are used to measure the thickness of protective, functional or finishing coatings on suitable aerospace components. They help quality teams verify whether the applied coating meets the specified thickness requirement.
What is a DFT meter?
A DFT meter, or Dry Film Thickness meter, is an instrument used to measure the thickness of a dry coating. Depending on the substrate and application, different measurement technologies may be used.
What is a coating thickness tester?
A coating thickness tester is a measurement instrument used to determine the thickness of a coating on a substrate. Many industrial coating thickness testers provide fast, repeatable and non-destructive measurements.
Can coating thickness gauges measure coatings on aerospace aluminium components?
Suitable gauges can measure coatings on non-ferrous substrates such as aluminium when the instrument and measurement principle are appropriate for the coating/substrate combination. The specific gauge and probe should be selected according to the application.
How should an aerospace manufacturer choose a coating thickness gauge?
Selection should consider the substrate, coating type, expected thickness range, required accuracy, component geometry, measurement locations, probe requirements, data-management needs, calibration process and technical support.
